Classe III
24,0Vdc 45° IP67

ELETTRA 12S

ELETTRA STAND 12: EXTERNAL LINEAR 12W

EXTERNAL LINEAR 12W

Protection class Classe III
IP grade IP67
Body material ALL
CRI Ra>80
Watt 0012
Ref. 20° , 45°
Power supply 24,0Vdc
Packaging Box
Warranty 2 years
Finishes Grigio chiaro opaco (RAL9006)
Downloads:

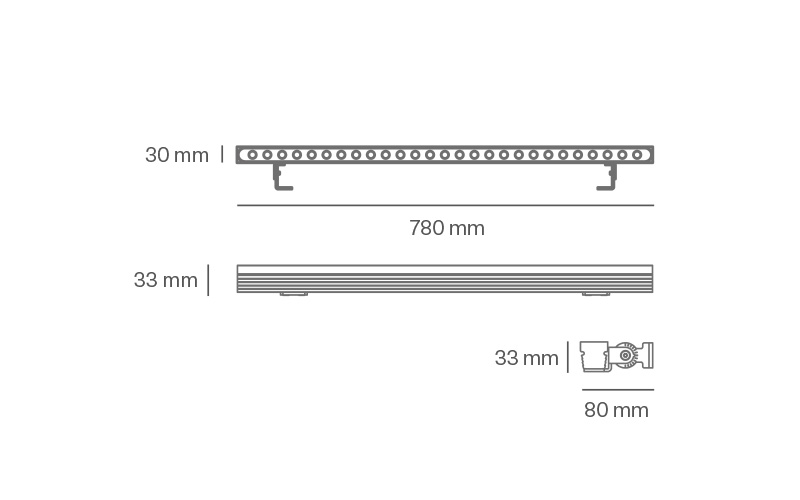

  • Technical drawing
  • Data sheet

Code Description
ET42G2412C20 ELETTRA 12 STAND LINEAR WALL/CEILING LAMP 12W 20° 24Vdc 3000K GREY
ET42G2412C45 ELETTRA 12 STAND LINEAR WALL/CEILING LAMP 12W 45° 24Vdc 3000K GREY
ET42G2412CE ELETTRA 12 STAND LINEAR WALL/CEILING LAMP 12W 20°X40° 24Vdc 4000K GR
ET42G2412N20 ELETTRA 12 STAND LINEAR WALL/CEILING LAMP 12W 20° 24Vdc 4000K GREY
ET42G2412N45 ELETTRA 12 STAND LINEAR WALL/CEILING LAMP 12W 45° 24Vdc 4000K GREY
ET42G2412NE ELETTRA 12 STAND LINEAR WALL/CEILING LAMP 12W 20°X40° 24Vdc 4000K GR
ET42VIS ANTI-GLARE VISOR FOR ELETTRA STAND 12W
Finishing Input power supply Color light Ref. Watt IP grade
ET42G2412C20 Grigio chiaro opaco (RAL9006) 24,0Vdc C 20° 0012 IP67
ET42G2412C45 Grigio chiaro opaco (RAL9006) 24,0Vdc C 45° 0012 IP67
ET42G2412CE Grigio chiaro opaco (RAL9006) 24,0Vdc N 0012 IP67
ET42G2412N20 Grigio chiaro opaco (RAL9006) 24,0Vdc C 20° 0012 IP67
ET42G2412N45 Grigio chiaro opaco (RAL9006) 24,0Vdc N 45° 0012 IP67
ET42G2412NE Grigio chiaro opaco (RAL9006) 24,0Vdc N 0012 IP67
ET42VIS 24,0Vdc 0012 IP67
